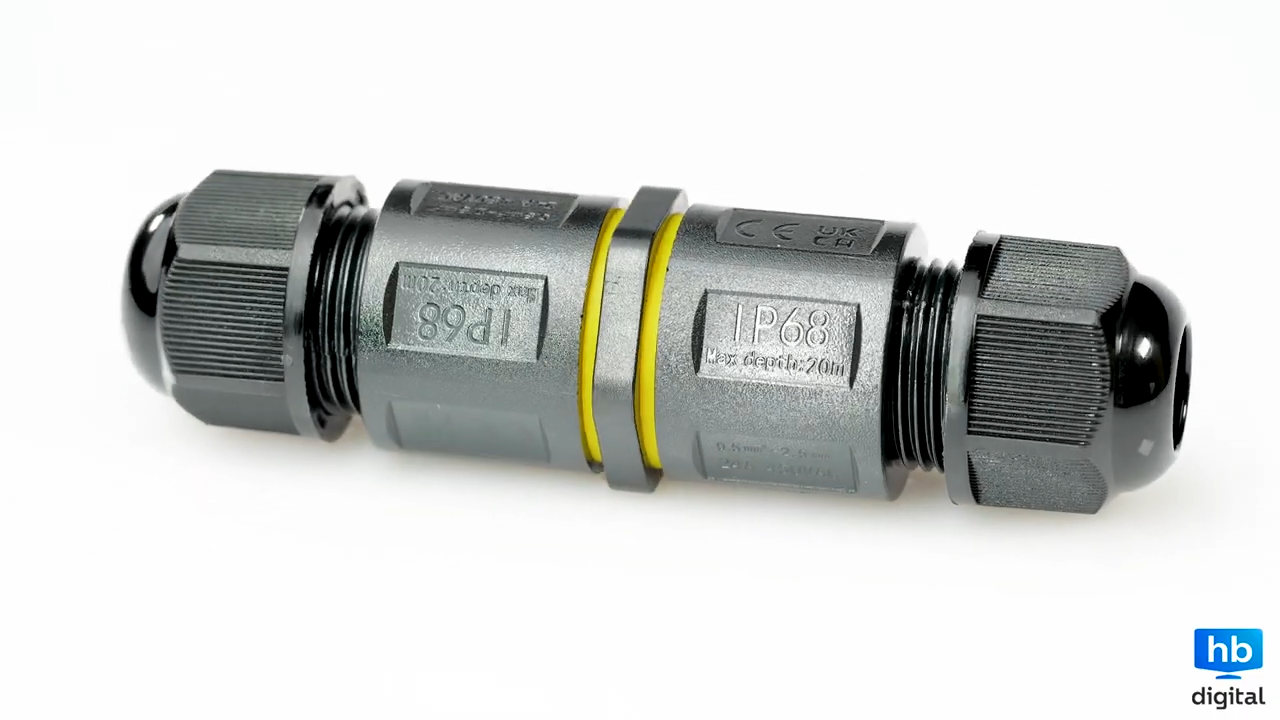

Our IP68 cable connector is made from high quality nylon which means it will not break or fade in sunlight and will last you for years. It is dustproof and waterproof.
The cable connector meets all quality standards and is particularly easy to plug in.
Technical data:
- Cable connector with screw connection IP68
- for 3 cable connections max. 3 x 0.5 - 1.0 mm² or 3 x 0.5 - 2.5 mm²
- Material housing: nylon
- Material connector: copper
- Current: 13.5A or 24A
- Voltage: 450VAC
- Protection: Rubber seal
- Degree of protection = IP68: dust & waterproof
- Wiring inserts: 2P/3P
- Max. Operating temperature: 105 °C
- Single wire: 0.5 - 1.0mm² (3-pole) or 3 x 0.5 - 2.5 mm² (3-pole)
- Waterproof test: depth 20 metres & operation 150 hours
- Certifications: KEMA, ENEC, CE, CB, SAA, ROHS-Complian
Connection instructions (wiring steps):
- Open the outer and inner covers on both sides and take out the connector
- Pull the stripped cable through the covers on both sides
- Place the stripped conductors in the connector and screw the wires tight. (Important: place conductors of the same colour opposite each other!)
- Tighten the inner and outer covers to the connector on both sides
- Screw the inner and outer covers tightly back together. Done!
Scope of delivery:
- 1 x cable connector IP68 waterproof depending on selection
