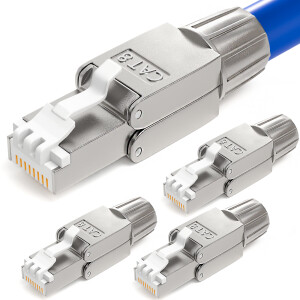

4 Pcs. RJ45 plug network plug CAT 7 LSA STP narrow hb-digital.de, 15,90 €

This series of connector is designed specially for field assembling with the solid installation cables. Its feature is not only a simple RJ45 plug, but there is PCB layout built-in, and the toolless design to support the field assembler make quick installation on-site. The rapid assembly could be done in only 2 minutes without special tools. It is suitable for network transmission up to 10 Gigabit Ethernet. Because of fast and cost-saving features, it is popular to the installers during the process of installation, repairs, and maintenance, etc.

Technical data:

Application:

Network plug CAT.7, shielded
Power compliant with ANSI/TIA/EIA 568C.2-1, ISO/IEC 11801, EN 50173
Supports PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3b) 100 watts
Integrated PCB to ensure excellent performance and low attenuation
Cable installation via IDC strips, colour-coded according to EIA/TIA 568 A & B
Cable fixation by screwable sleeve
Suitable cable diameter: 6 - 7.5 mm
Suitable conductor thickness (with isolation): 1.35 to 1.5 mm
Suitable for: AWG 22-24 stranded and solid wire network cables (copper wires, round type)
Easy to terminate, toolless construction, no crimping tool required
Available for repeated use, especially suitable for DIY connection with LAN cables
The functional parts pass the reliability test according to TIA standards

Construction:

Body: Shield version Zinc-alloy with Nickel-plated; UTP version Plastic material
Contact Bracket: PC, UL 94V-2
PCB Material: FR-4, UL 94V-0
Contact Material: Phosphor bronze with Nickel-plated
Contact Finishing: Shield version 50u gold-plated; UTP version 3u gold-plated
IDC Terminal: Phosphor bronze with Tin-plated
Cap: PC, UL 94V-2, printed with 568A&B color codes
Operating Temperature: -10°C to +60°C (ISO/IEC 11801, ANSI/TIA 568C.2)
Storage Temperature: -40°C to +60°C
Mating Cycles (with RJ45 jack): 750 min. (ISO/IEC 11801, IEC 60603-7-5)
Insertion Force: 30N Max. (IEC 60603-7-5)
Retention strength: 7,7 kg between jack and plug
Clamp: >200 acc. to ISO/IEC 11801, IEC 60603-7-5
