10G SFP+ Multimode Module – LC Duplex 850 nm with DDM up to 400 m
General information: The 10G SFP+ module is a compact optical transceiver for high-speed network connections at up to 10 Gbit/s. The module operates according to the 10GBASE-SR/SW standard and transmits data over multimode fibre at a wavelength of 850 nm. Thanks to its standardised SFP+ form factor, the SFP module is suitable for expanding compatible switches, media converters and other network devices.
Function: The SFP+ transceiver converts electrical network signals into optical signals and transmits them over two optical fibres. One fibre is used for transmission and the second for reception. The LC duplex interface enables connection to suitable LC/UPC multimode fibre optic cables.
Application: The SFP module is suitable for direct 10 Gigabit connections between switches, media converters, servers and other network components equipped with a compatible SFP+ slot. Typical applications include data centres, server rooms, network cabinets, office buildings and structured building cabling.
Transmission distance: Depending on the multimode fibre used, the transceiver supports different transmission distances. It reaches up to 30 m with OM1, up to 80 m with OM2, up to 300 m with OM3 and up to 400 m with OM4 or OM5.
Design: The compact SFP+ housing features an LC duplex interface with UPC polish. Thanks to its hot-plug capability, the module can be installed or replaced in suitable network devices without shutting down the entire system. Compared with permanently installed transceivers, the modular SFP design allows flexible adaptation of the network connection.
Technical characteristics: The 10GBASE-SR/SW transceiver operates at a nominal wavelength of 850 nm and a wavelength range of 840 to 860 nm. The optical transmit power is −5 to 0 dBm and the receiver sensitivity is −11.5 dBm. DDM enables digital monitoring of important operating parameters of the SFP+ module.
Compatibility: The module is MSA-compliant and compatible with SFF-8472 and IEEE 802.3ae. According to the manufacturer, it is suitable for network devices from numerous brands. Actual operation may nevertheless depend on the specific device model, firmware and manufacturer settings.
Conclusion: The 10G SFP+ module with LC duplex is a flexible solution for high-speed multimode fibre optic connections at up to 10 Gbit/s. With support for OM1 to OM5, DDM, hot-plug operation and transmission distances of up to 400 m, the transceiver is suitable for professional network connections in buildings, server rooms and data centres.
Technical data
| General data | |
|---|---|
| Product type: | Optical SFP+ transceiver module |
| Form factor: | SFP+ |
| Transmission standard: | 10GBASE-SR / 10GBASE-SW |
| Ethernet standard: | IEEE 802.3ae |
| Data transmission rate: | up to 10 Gbit/s |
| Transmission medium: | Multimode fibre optic cable |
| Transmission mode: | Duplex |
| DDM: | Digital Diagnostic Monitoring supported |
| Hot-plug: | supported |
| Optical data | |
|---|---|
| Supported fibre types: | OM1, OM2, OM3, OM4 and OM5 |
| Connector: | 1 × LC Duplex |
| Connector polish: | UPC |
| Nominal wavelength: | 850 nm |
| Wavelength range: | 840 to 860 nm |
| Optical transmit power TX: | −5 to 0 dBm |
| Receiver sensitivity RX: | −11.5 dBm |
| Stressed RX sensitivity: | −10.5 dBm |
| Maximum RX input level: | 0 dBm |
| Extinction ratio: | at least 3 dB |
| Return loss: | 12 dB |
| LOS assert: | −25 dBm |
| LOS deassert: | −13 dBm |
| Dispersion penalty: | 3.9 dB |
| Relative intensity noise: | −128 dB/Hz |
| Transmission distance | |
|---|---|
| Distance with OM1: | up to 30 m |
| Distance with OM2: | up to 80 m |
| Distance with OM3: | up to 300 m |
| Distance with OM4: | up to 400 m |
| Distance with OM5: | up to 400 m |
| Electrical and physical data | |
|---|---|
| Supply voltage: | 3.3 V DC |
| Power consumption: | less than 1 W |
| Operating temperature: | 0 °C to +70 °C |
| Storage temperature: | −40 °C to +85 °C |
| Dimensions: | approx. 57.5 × 13.7 × 10.8 mm |
| Laser class: | Class 1 according to IEC 60825 |
| Standards and compatibility | |
|---|---|
| SFP+ specification: | SFF-8472 and SFP+ MSA |
| Compliance: | RoHS and REACH compliant |
| Compatible manufacturers: | Allied Telesis, Allnet, Avaya, Cisco, D-Link, Edimax, Finisar, Force10, Gigamon, Intellinet, KTI Networks, LevelOne, Netgear, Planet, Tenda, TP-Link, TRENDnet, MikroTik, Enterasys, Riverstone, UniFi, Ubiquiti, Zyxel and ZTE |
Package contents
| 1 × 10G SFP+ transceiver module, multimode, LC duplex UPC, 850 nm |
FAQ
What is an SFP module?
- An SFP module is a replaceable transceiver for network devices. It is inserted into a compatible SFP or SFP+ slot and provides an optical or electrical network connection depending on the version.
Which fibre optic cables can be used with the SFP+ transceiver?

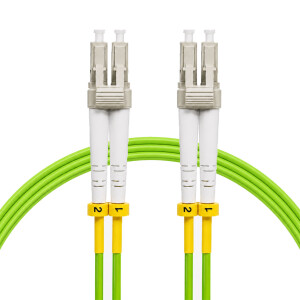

- The module is designed for OM1, OM2, OM3, OM4 and OM5 multimode fibre optic cables. An LC/UPC to LC/UPC duplex fibre optic cable is required.
What transmission distance does the SFP+ module support?
- The maximum distance is up to 30 m with OM1, 80 m with OM2, 300 m with OM3 and 400 m with OM4 or OM5.
Can the transceiver be used with singlemode cables?
- No. This 850 nm transceiver is designed for multimode fibre. A suitable singlemode transceiver is required for singlemode connections, for example a 10GBASE-LR SFP+ module operating at 1310 nm.
Which matching module is required at the other end?
- A compatible 10GBASE-SR SFP+ transceiver with 850 nm, multimode support and an LC duplex interface is also required at the other end of the fibre optic connection.
What does DDM mean on an SFP module?
- DDM stands for Digital Diagnostic Monitoring. The function allows a compatible network device to digitally monitor various operating parameters of the transceiver.
Can the SFP+ module be installed during operation?
- The module is hot-pluggable. With compatible network devices, the SFP+ transceiver can be inserted or removed without restarting the entire device.
Is the SFP+ transceiver compatible with every switch?
- The module is MSA-compliant and, according to the manufacturer, compatible with numerous network brands. Actual support may nevertheless depend on the switch model, firmware and manufacturer settings.
