1000m Ethernet Network Cable CAT.7 LAN Cable 1000MHz S/FTP, 739,90 €

CAT 7 Installation Cable GHMT Certified – Pure Copper for Stable Networks up to 10 Gbit/s

General Information: This high-quality GHMT certified CAT 7 network / installation cable is designed for building high-speed Gigabit Ethernet networks. The cable is made of pure copper conductors, supports transmission speeds of up to 10 Gbit/s and is backward compatible with CAT.6a, CAT.6, CAT5e and CAT.5 categories. The halogen-free LSZH outer jacket is especially suitable for modern building installations and professional network infrastructures.

Function: The CAT 7 installation cable features AWG23 copper conductors, high-quality S/FTP double shielding and additional PiMF pair shielding. This combination reduces electromagnetic interference and ensures stable, fast and reliable data transmission. Thanks to the GHMT certification, the cable meets high standards for quality and network performance.

Application: The CAT 7 installation cable is intended for fixed network installations and is ideal for:

network outlets
patch panels
Keystone modules
LSA network connectors
server cabinets and structured building cabling
professional networks in offices, technical rooms and industrial environments

The cable is supplied without pre-assembled connectors and is specifically designed for LSA termination technology.

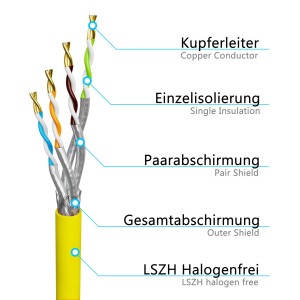

Hardware & Technology: The cable is based on a solid wire construction with AWG23/1 pure copper conductors and four twisted wire pairs. The combination of S/FTP overall shielding, PiMF pair shielding and LSZH outer jacket provides excellent stability, low interference and reliable network performance. The cable supports IEEE 802.3, 10/100/1000Base-T, 10GBase-T as well as PoE, PoE+ and PoE++ applications.

Conclusion: This CAT 7 S/FTP network cable made of pure copper provides a reliable foundation for modern network installations. With GHMT certification, transmission speeds up to 10 Gbit/s, robust double shielding and a halogen-free LSZH jacket, the cable is ideal for professional structured network cabling.

Technical Data

Product type:	CAT 7 network cable / installation cable
Cable category:	CAT 7
Certification:	GHMT Type Approval
Conductor construction:	Twisted pair, 4 pairs / 8 conductors, AWG23/1
Inner conductor material:	Bare annealed copper
Inner conductor diameter:	0.55 mm (AWG23/1)
Conductor insulation:	SFS-PE (Foam-Skin Polyethylene), EN 50290-2-23
Pair colours:	Blue + white, orange + white, green + white, brown + white
Shielding:	S/FTP PiMF, aluminium foil per pair with 100% coverage
Overall shielding:	Al-Mg braid with ≥ 40% coverage
Outer jacket material:	LSZH, halogen-free, EN 50290-2-27
Outer jacket thickness:	0.60 mm nominal
Outer diameter:	Ø 7.2 mm ± 0.3 mm
Jacket colour:	Yellow (RAL 1016)
Fire protection class (CPR):	Eca according to EN 50575
Data frequency:	max. 1000 MHz
Transmission speed:	up to 10 Gbit/s
Application range:	IEEE 802.3, 10Base-T, 100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, PoE, PoE+, 4PPoE
Backward compatible with:	CAT.6a, CAT.6, CAT5e, CAT.5
Cable type / installation:	Rigid installation cable for LSA connections (not for crimping)
Max. tensile loading:	150 N
Dynamic bending radius:	min. 8 x OD
Static bending radius:	min. 4 x OD
Storage and transport temperature:	-20 to +60 °C
Operating temperature:	-20 to +50 °C
Installation temperature:	0 to +50 °C
Impedance:	100 ± 15 Ohm @ 4-100 MHz; 100 ± 25 Ohm @ 100-600 MHz
DC resistance:	max. 95 Ohm/km
DC loop resistance:	max. 190 Ohm/km
Resistance unbalance:	max. 2%
Insulation resistance:	min. 5 GOhm x km
Mutual capacitance:	45 pF/m nominal @ 1 kHz
Capacitance unbalance:	max. 1.6 pF/m @ 1 kHz
Signal propagation delay:	max. 450 ns/100 m
Delay skew:	max. 10 ns/100 m
Voltage resistance:	72 Vdc max.
Coupling attenuation:	CA-Type 1b
NVP value:	79%
Separating class:	Class d according to EN 50174-2
Standards:	ISO/IEC 11801-1, IEC 61156-5, EN 50173-1, EN 50288-4-1, EN 60332-1-2
EU conformity:	LVD Low Voltage Directive 2014/35/EU, RoHS Directive 2015/863/EU

Scope of delivery

1 x 1000m CAT 7 network cable yellow (RAL 1016)

Product type:	Network cable
Location of use:	Indoor
Cable type:	Simplex
Category type - CAT:	CAT 7
