The high-quality GHMT certified Duplex Ethernet network or installation cable is used for building high speed networks of Gigabit Ethernet. Such a cable can support speeds of up to 10 Gbp/s. It is also backward compatible with CAT.6a, CAT.6, CAT5e and CAT.5 categories.
Installation options: optimised for high transmission speeds of up to 10 Gigabit/s and numerous application options in the private and industrial sectors.
Range of use: IEEE 802.3, WLAN Wi-Fi network, 10/100/1000Base-T, 10GBase-T, PoE, PoE+, PoE++
Installation note: rigid installation cable for LSA RJ45 connectors - the pairs should not be very close together in a single row (as with most crimp connectors). For maximum performance, we advise using the compatible LSA RJ45 connector plugs, keystones or patch panels.
Technical data:
- Cable category: CAT.7 Duplex
- Inner conductor material: pure copper
- Inner conductor diameter: Ø 0.56 mm (AWG23)
- Conductor construction: twisted pair, 4 wire pairs x2 (2x8 wires)
- Pair colours: green + white; brown + white; orange + white; blue + white
- *the second cable in the pair is plain white - this is typical for installation cables
- Shielding: S/FTP PiMF (double shielded): Aluminium foil with plastic sheathing (pair) 100% coverage > Shielding Braiding of aluminium wires 26% coverage
- Outer sheath diameter: Ø 7.2 mm x2 (2x8 wires)
- Outer sheath material: LSZH Halogen-free sheath
- Fire protection class (BauPVO / CPR): Cca s1a d1 a1 (EN 50575:2014)
Temperature range:
- Installation -20°C ... +60°C
- in operation 0°C ... +50°C
- Storage -15°C ... +50°C
Bending radius:
- during installation min. 4 x D
- when installed min. 8 x D
- Transmission speeds: up to 10 Gbit/s 10000MBit/s
- Data frequency rate: max. up to 1000 MHz
- Impedance: @100MHz - 100 ±5Ω Ohm
- Coupling attenuation: 85 dB
- Operating voltage: 125 V
- Crush resistance: min. 1000 N/10cm
- DC resistance: max. 76 Ohm/km
- Resistance unbalance: max. 2%
- Insulation resistance: min. 5000MΩ x km
- Mutual capacitance: nom. 43 pF/m
- Capacitance unbalance: max. 1600 pF/km
- Propagation delay: max. 430 ns/100m
- Delay skew: max. 25 ns/100m
- Testing voltage: 1000 V
- NVP value: 78-80%
Connection:
- Connection A: Network raw cable (without plug)
- Connection B: Network raw cable (without plug)
*the matching LSA connector can be ordered separately from us
Standards:
- ISO IEC 11801 2nd ed
- ISO IEC 61156-5
- EN 50290-2-23
- EN 50290-2-27
- EN 60332-1-2
- EN 60754-1/2
- EN 61034-2
- LVD Low Voltage Directive 2014/35/EC
- RoHS EC Directive 2015/863/EU
Scope of delivery:

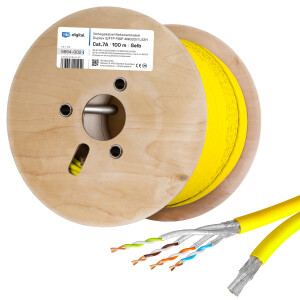

- 1 x 100m Network cable CAT 7 Duplex yellow (RAL 1016)
