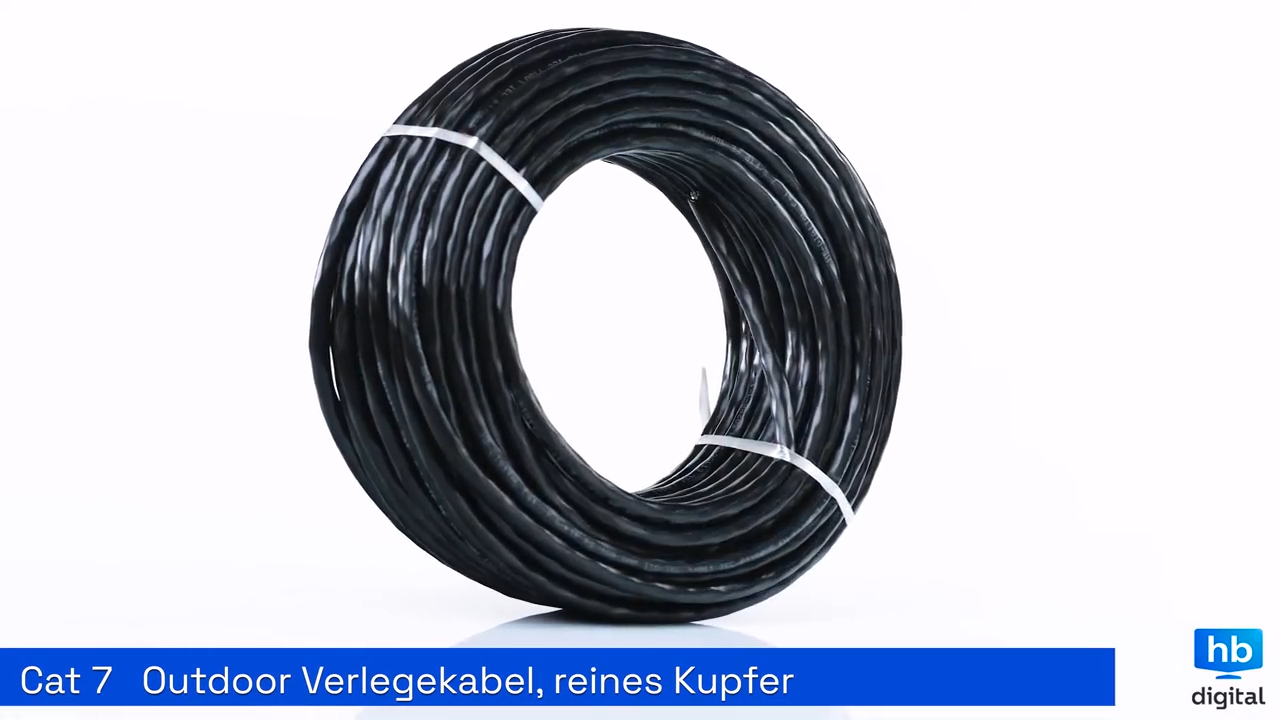

100m Network cable CAT 7 Outdoor LAN data cable max. 1000 MHz S/FTP PE AWG23 black

  • CAT 7 Outdoor high quality pure copper installation cable
  • S/FTP double shielded PiMF (foil pair shield + braided overall shield), AWG 4x2x23
  • Data cable CAT 7 Outdoor with max. data frequency rate up to 1000 MHz
  • Network cable with transmission speeds up to 10 Gbit/s 10000MBit/s
  • Premium quality with Ø 7.2mm outer diameter
  • This CAT 7 outdoor LAN cable is perfect for laying and creating a LAN network for outdoor use.
  • Copper Ethernet LAN cable / installation cable / outdoor installation cable for LSA connections (not for crimping): network sockets, patch panels, Keystone modules, network plugs, server cabinets, etc.
  • The network cable is highly flexible and guarantees interference-free data transmission



Length 100m
Pcs.
87,90 €
0,88 € per 1 m
incl. 19% VAT , Free shipping (Standard)
Old price: 109,90 €
  • Available immediately
  • Delivery time: 1 - 2 Workdays Shipping info
Description

The high-quality network cable outdoor or installation cable is used for the construction of high-speed networks of Gigabit Ethernet. Such a cable can support speeds of up to 10 Gbps. It is also backward compatible with CAT.6a, CAT.6, CAT.5e and CAT.5 categories.

Installation options: optimised for high transmission speeds of up to 10 Gigabit/s and numerous applications in the private and industrial sectors.

Range of use: IEEE 802.3, WLAN Wi-Fi network, 10/100/1000Base-T, 10GBase-T, PoE, PoE+, PoE++

Installation note: rigid installation cable for LSA connections - the pairs should not be very close together in a row (as with most crimp connectors). For maximum performance, we advise using the compatible LSA RJ45 plugs, keystone or connectors.


Technical data:

  • Cable category: CAT.7 Outdoor
  • Core inner conductor material: pure copper (4x2 cores)
  • Inner conductor diameter: Ø 0.56 mm (AWG23)
  • Conductor construction: twisted pair, 4 core pairs
  • Pair colours: green + white; brown + white; orange + white; blue + white
  • *the second cable in the pair is plain white - this is typical for installation cables
  • Shielding: S/FTP PiMF (double shielded): Aluminium foil with plastic sheathing (pair) 100% coverage > Shielding Braiding of aluminium wires 26% coverage
  • Outer sheath diameter: Ø 7.2 mm
  • Outer sheath material: PE, UV-resistant, weather- and moisture-proof
  • Transmission speeds: up to 10 Gbit/s 10000MBit/s
  • Data frequency rate: max. up to 1000 MHz
  • Impedance: @100MHz - 100 ±5Ω Ohm
  • Coupling attenuation: 85 dB
  • Operating voltage: 125 V
  • Crush resistance: min. 1000 N/10cm
  • DC resistance: max. 76 Ohm/km
  • Resistance unbalance: max. 2%
  • Insulation resistance: min. 5000MΩ x km
  • Mutual capacitance: nom. 43 pF/m
  • Capacitance unbalance: max. 1600 pF/km
  • Propagation delay: max. 430 ns/100m
  • Delay skew: max. 25 ns/100m
  • Testing voltage: 1000 V
  • NVP value: 78-80%

Temperature range:

  • Installation -20°C ... +60°C
  • in operation 0°C ... +50°C
  • Storage -15°C ... +50°C

Bending radius:

  • during installation min. 4 x Ø
  • when installed min. 8 x Ø

Connection:

  • Connection A: Network raw cable (without plug)
  • Connection B: Network raw cable (without plug)

*the matching LSA connector can be ordered separately from us

Standards:

  • ISO IEC 11801 2nd ed
  • ISO IEC 61156-5
  • EN 50173-1
  • EN 50290-2-24
  • EN 50290-2-23
  • LVD Low Voltage Directive 2014/35/EC
  • RoHS EC Directive 1015/863/EU

Scope of delivery:

  • 1 x 100m network cable CAT 7 outdoor black (RAL 9011)
